LED Controllers

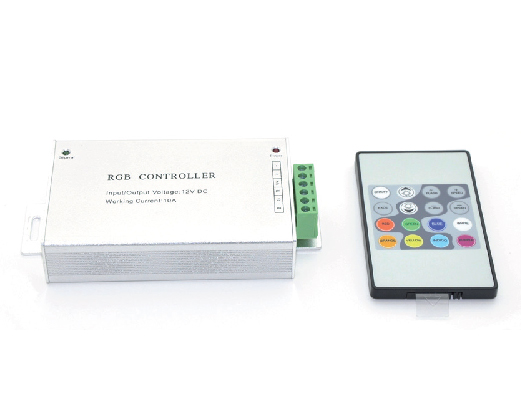

LED CONTROLLER v2.0

  • Our most affordable LED controller.

  • 24 Different modes (8 Static, 8 Transitional)

  • Adjustable 16 level speed (dynamic display mode)

  • Adjustable 16 level brightness (static display mode)

  • Wireless Control with 45' range.

  • Works with both 12V and 24V DC power supplies.

  • For indoor use only.

DMX512 CONSTANT VOLTAGE DECODER

  • RGBX DMX decoding driver works to convert universal DMX512/1990 digital signal to PWM signal which controlled by DMX512 console.

  • 256 levels grey scale output per channel and realized 0-100% brightness levels.

  • Unique programming technology which creates exclamatory, perfect color fade and smooth effects.

  • Can control single color, RGB, RGBW LED lights.

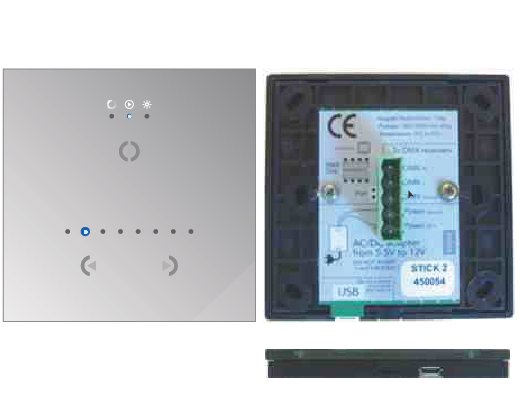

GA2 - CONTROLLER

  • DMX Stand Alone Controller (512 channels) with a glass face.

  • 4 Touch sensitive buttons (on/off, mode, previous, next)

  • Up to 99 dynamic or static scenes.

  • Live setting of the intensity and color of a scene.

  • Programmable through the included USB cable and control software.

  • Compatible with any DMX fixture or DMX LED Driver.

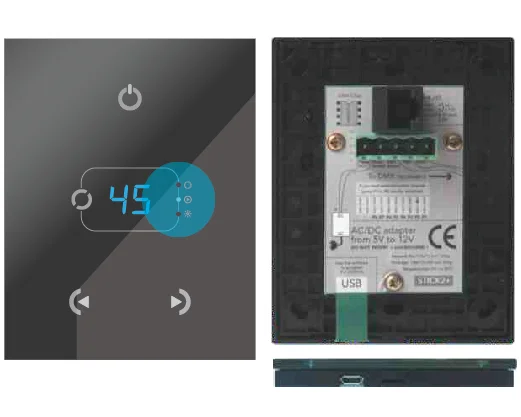

GU2 - CONTROLLER

  • DMX Stand Alone Controller (128 channels) with a glass face.

  • 3 Touch sensitive buttons (on/off/mode, previous, next)

  • Up to 24 dynamic or static scenes (8 first visualized by a LED)

  • Live setting of the intensity and color of a scene.

  • Programmable through the included USB cable and control software.

  • Compatible with any DMX fixture or DMX LED Driver.

  • One dry contact trigger port on PCB.

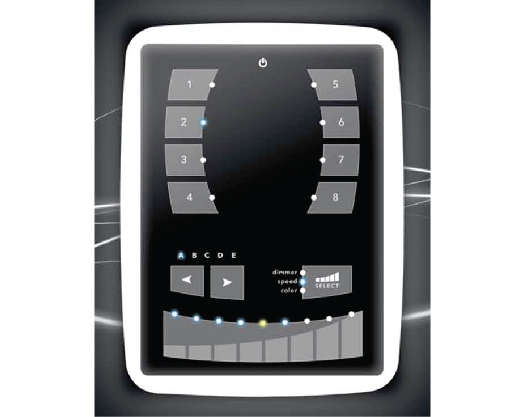

STICK-CU4 - CONTROLLER

  • This DMX controller is aimed at architectural lighting installations requiring an advanced level of programming (color changing effects, specific colors, etc.)

  • The controller has been engineered to meet the needs of lighting designers whilst providing a clean and user-friendly panel.

  • Up to 36 dynamic or static scenes - 512 DMX channels.

  • Compatible with any DMX fixture or DMX LED Driver.

  • 8 dry contact trigger ports.

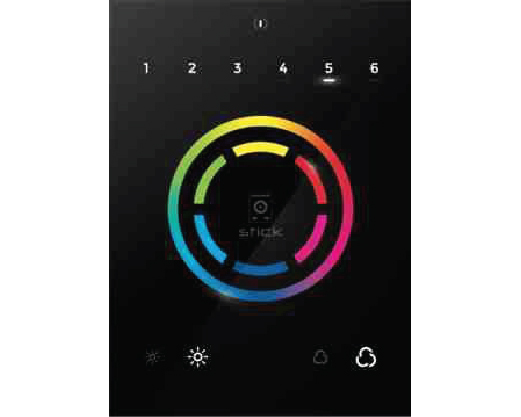

STICK-DE3 - CONTROLLER

  • This feature rich lighting controller has been designed to provide a control solution for the most demanding of projects, whilst maintaining an easy to use panel of touch sensitive buttons.

  • The controller integrates a graphical color screen allowing scene photos to be displayed. Easily view the selected zone, scene name and design without the need to navigate through complex menus.

  • Control lighting remotely with network communication.

  • Multi-zone microSD memory.

With so many features available please see our spec sheet below for more information.

DMX-STICK - CONTROLLER

  • Designed primarily for architectural applications, our easy stand alone has been used for more than 10 years by lighting professionals all over the world.

  • Easy to learn because it allows to simply create a single zone show - one scene at a time - with static or dynamic scenes, even for those with little knowledge of lighting control.

  • Ideal for LED, RGB and DMX lighting.

  • State of the art design and technology.

With so many features available please see our brochure below for more information.


LED-DMX-8A-5CH

  • Industrial level DMX512 & RDM decoder, flicker free both by human eyes or camera, no noise;

  • Comply with the latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard) standard protocols, compatible with DMX512 master consoles from other international incorporations

  • Total 8A in 5 PWM output channels, common anode, DC12-24V. DMX channel quantity from 1CH to 5CH settable

  • Output terminal includes: XLR 5pin, XLR 3pin, RJ45, Screw DMX;
